EV800D 5.8G 40CH 5 Inch 800*480 Video Headset HD DVR Diversity FPV Goggles With Battery For RC Model RC FPV Drone

$78.49 USD

~~$78.49 USD~~ $78.49 USD

Sale Sold out

Default Title Default Title

Quantity

SPECIFICATIONS

Brand Name: uuustore

Choice: yes

For Vehicle Type: Helicopters

Four-wheel Drive Attributes: Assemblage

Hign-concerned Chemical: None

Is Electric: lithium battery

Material: Metal

Model Number: EV800D 5.8G 40CH

Origin: Mainland China

RC Parts & Accs: RECEIVERS

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Size: As show

Technical parameters: KV1100

Tool Supplies: Battery

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

EV800D 5.8G 40CH 5 Inch 800*480 Video Headset HD DVR Diversity FPV Goggles With Battery For RC Model RC FPV Drone

Description :

Item Name : EV800D

Appearance	Dimension: 18014582mm Weight: 362g without antenna Belt : three-way adjustable belt
Specification	Build in DVR R ecord up to 720*576px full frame rate video, no frame lost (C10 card required) Re play in MENU Require C10 card to r ecord full frame rate
	Super sensitiveness in Only one RX5808 PRO modules Great performance when two types (Linear and Omni) antennas
Display	Screen size: 5.0 inch Screen resolution: 800*480(No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV Ratio : 16:9, 4:3 View Angle: 140/120 degree(Horizontal/Vertical)

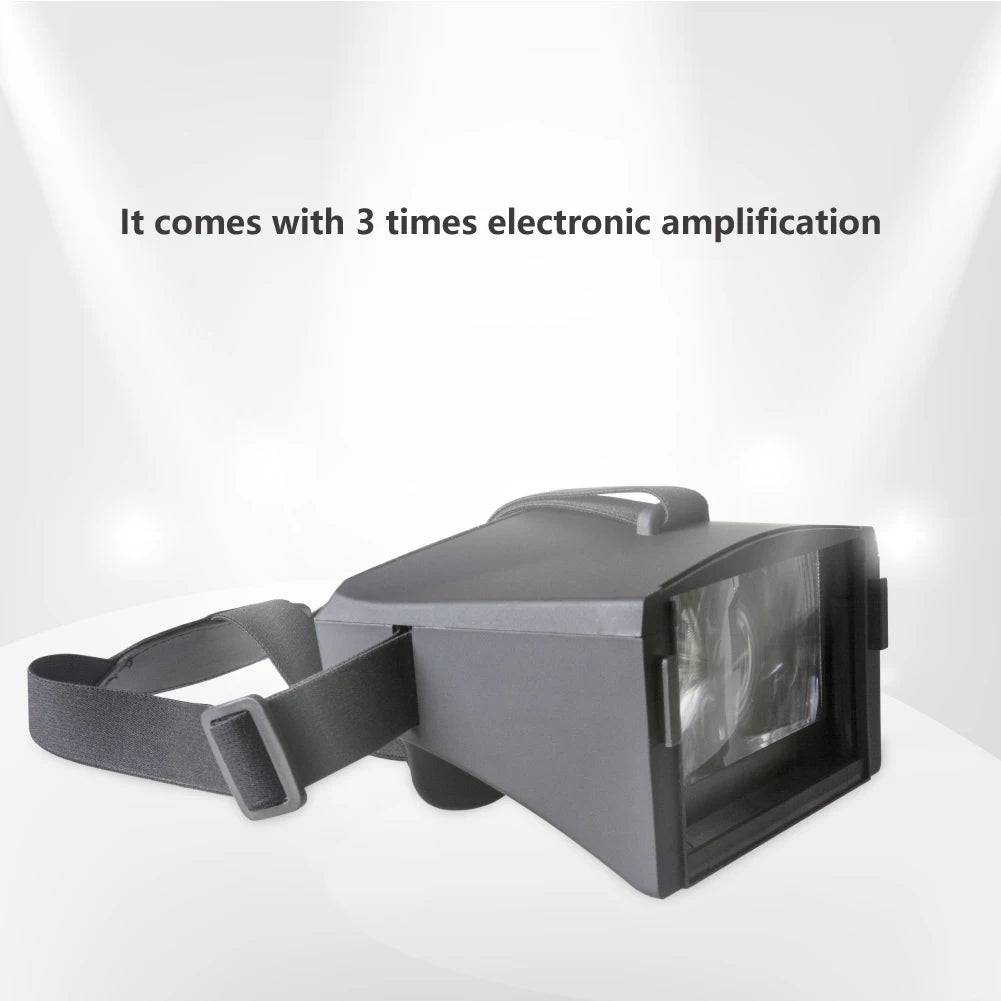

Lens	3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light;
Battery	Built-in 7.4V/1200mAh battery; Each battery circle offer around 2hr working time; 10-22V wide range recharging voltage range, typical recharging voltage is 12V Charger : 12V,2A, DC 2.5mm 2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.

Frequencies (5.8GHz, with RaceBand)

CH	CH 1	CH 2	CH 3	CH 4	CH 5	CH 6	CH 7	CH 8
GROUP	CH 1	CH 2	CH 3	CH 4	CH 5	CH 6	CH 7	CH 8
A or FR1	5865 MHZ	5845 MHZ	5825 MHZ	5805 MHZ	5785 MHZ	5765 MHZ	5745 MHZ	5725 MHZ
B or FR2	5733 MHZ	5752 MHZ	5771 MHZ	5790 MHZ	5809 MHZ	5828 MHZ	5847 MHZ	5866 MHZ
C or FR3	5705 MHZ	5685 MHZ	5665 MHZ	5645 MHZ	5885 MHZ	5905 MHZ	5925 MHZ	5945 MHZ
D or FR4	5740 MHZ	5760 MHZ	5780 MHZ	5800 MHZ	5820 MHZ	5840 MHZ	5860 MHZ	5880 MHZ
R or FR5	5658 MHZ	5695 MHZ	5732 MHZ	5769 MHZ	5806 MHZ	5843 MHZ	5880 MHZ	5917 MHZ

Features:
Built-in with super HD DVR up to 720*576px resolution
Diversity RaceBand 40ch Auto-Searching
Two system (Display/Re cord duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 super speed card to ensure the full frame recording)
Work friendly with p ilot-OSD, no block on the important flying OSD information;
Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod;
HD high brightness 5 inch LCD specially tuned for FPV racing;
Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand;
Advanced auto-searching function and the working frequency show on screen;
Built-in 7.4V 1200mAh battery, each full charge offer 2 hours working time;
Wide range re-charge voltage 11-20V;
Accept 2S or 3S batteries as back-up power source, to prolong the working time;
Nice ergonomic design and fit different faces;
Super-wide visible angle up to 82 degree;
92% transparent lens adopted, no distort, no blur on the edge of screen;
Light weight 375g with 3.5 hr 1200mAh battery, RTF for any scale racing game;
5 Inch 800*480px HD high brightness LCD

Package Included :
1 x EV800D 40CH 5.8G Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x 3S to DC Power Cable
1 x User Manual
1 x Clean cloth
1 x Bag
